Wedge Grip - screw
GR.WE.SC
The perfect manual wedge grip for high strength and self tightening clamping of material samples.
Description
Easy to use, manual screw-action wedge grip for high strength clamping of flat or round material samples. Grip body moves upwards for clamping, wedges move only horizontally and the clamping lengths is thus constant, independent of specimen thickness. The main gripping force is generated during testing taking advantage of the wedge effect.
Application
Tensile testing of various materials, including metal, plastics, composites, wood.
Specifications
Model | GR.WE.SC.005 | GR.WE.SC.010 | GR.WE.SC.025 | GR.WE.SC.050 | ||
Force Capacity | 5 kN | 10 kN | 25 kN | 50 kN | ||
Type | Wedge Action | |||||
Specimen Thickness | 0...10 mm | 0...12 mm | 0...16 mm | 0...20 mm | ||
Operation | Manual, Screw | |||||
Temperatur Rating | -150...+280 °C | |||||
Weight | 4.5 kg | 5.2 kg | 6.5 kg | 8.4 kg | ||

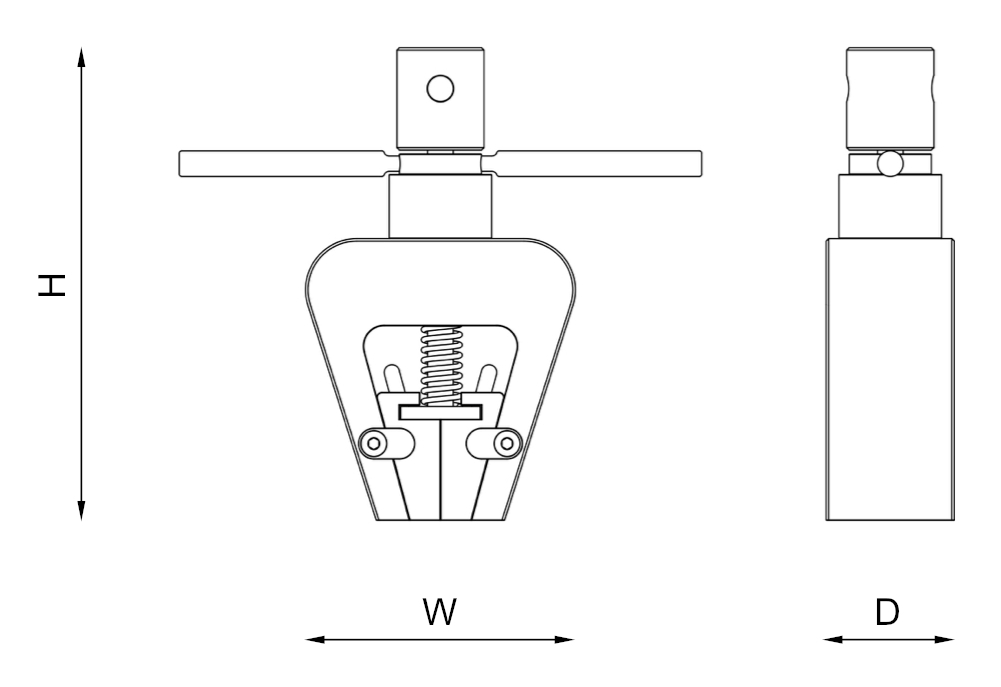

Dimensions
| H W D | 140 110 50 | 140 110 50 | 145 125 55 | 150 140 60 | |
Adapter & Jaws
Adapter Male
Adapter Female
Jaw for Flat Specimens
Jaw for Round Specimens
