Universal Controller
Universal Controller for
Testing Systems
THELKIN offers a universal controller to upgrade and retrotify static and dynamic testing systems. The THELKIN universal controller is an excellent solution for upgrading test equipment to the latest state of the art and operating it with the latest control electronics and software.
Specifications
General Specifications
- 20 kHz PID control loop
- Safety: Emergency Stop, End Stops, Safety Doors
- CE / UL Certified
- Real-time limit and error monitoring
- Robust and shielded sheet metal housing
- Single-channel onfiguration (bi-axial optional)

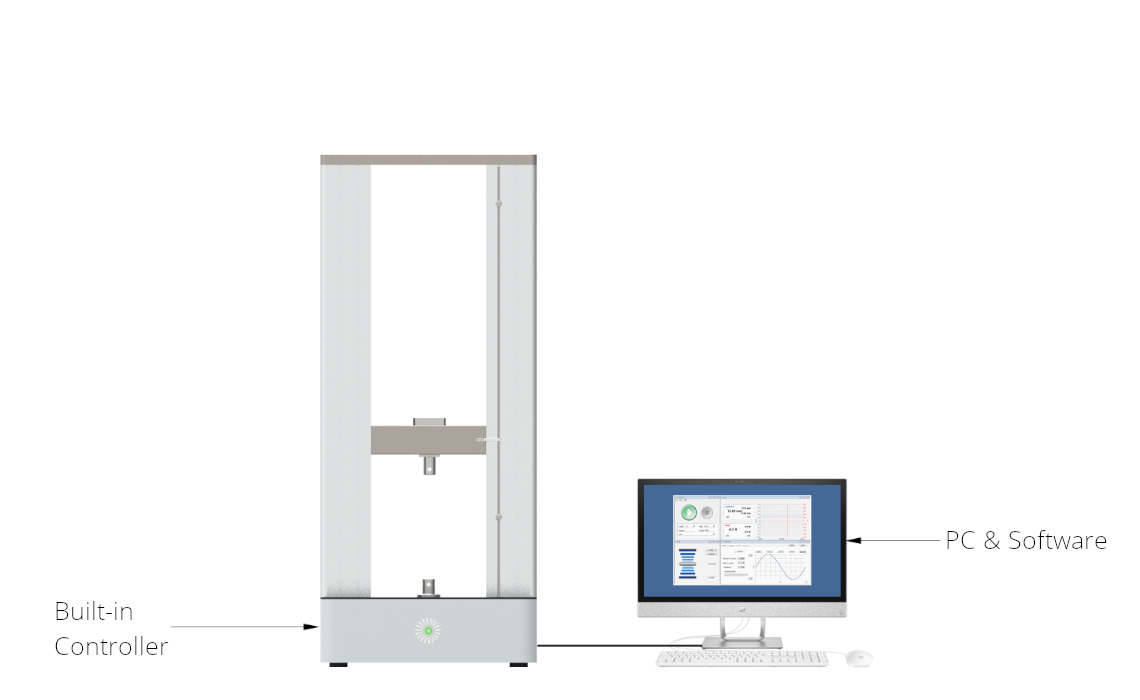

Static Testing Systems
The THELKIN universal controller and the associated software can be connected to any static testing system.

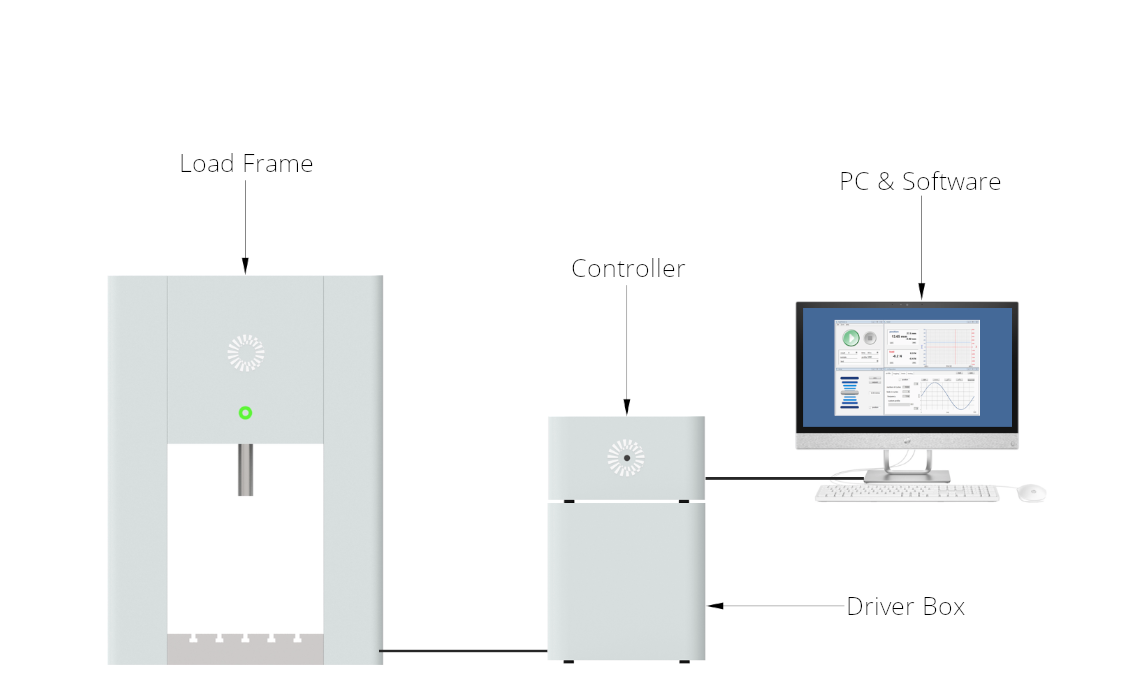

Dynamic Testing Systems
The THELKIN universal controller and the associated software can be connected to any dynamic testing system.

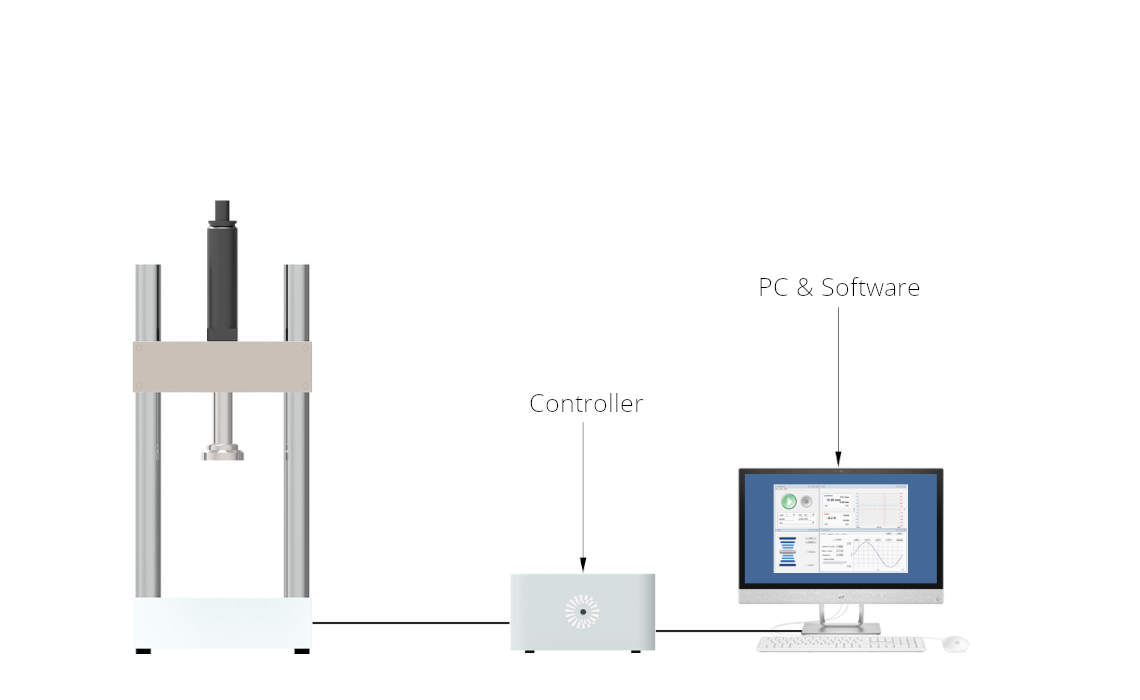

Hydraulic Testing Systems
The THELKIN universal controller and the associated software can be connected to most hydraulic testing system.
Analog Channels
Input
- 2 x standard (load sensor, temper.)
- 4 x optional (extensometer, other)
Output
- 1 x standard (control signal)
- 2 x optional (load, position)
Digital Channels
Input
- 6 x standard (encoder, doors, stops)
- 2 x optional (trigger, general)
- 1 x standard (enable)
- 2 x optional (trigger, general)
Serial Channels
RS-232
- 2 x optional (eg. man. control panel)
RS-485
- 1 x optional (general commun.)
USB 2.0
- 1 x optional (general commun.)
Specifications
One software for all systems: static and dynamic load frames are driven by the same highly user-friendly, versatile and comprehensive interface.
- Easy to use & flexible
- Suitable for static and dynamic testing
- Multi-level safety features
- Multi-language support
- Versatile data acquisition capabilities
- Data processing and reporting
