Lower Limb Tester
Testing Systems for
Lower Limb Prosthesis
THELKIN offers a lower limb prosthesis simulator with innovative kinematics and control technology, which can accurately used for static and cyclic strength tests on lower-limb prostheses. Based on ISO 10328 specifications the ankle test system consists of a two-axis load frame.
Specifications
General Specifications
| Dynamic Load max. | N | 5'000 | ||||
| Static Load max. | N | 5'000 | ||||
| Stroke | mm | 150 | ||||
| Frequency | max | Hz | 10 | |||
| Wave forms | sine, triangle, step & custom | |||||

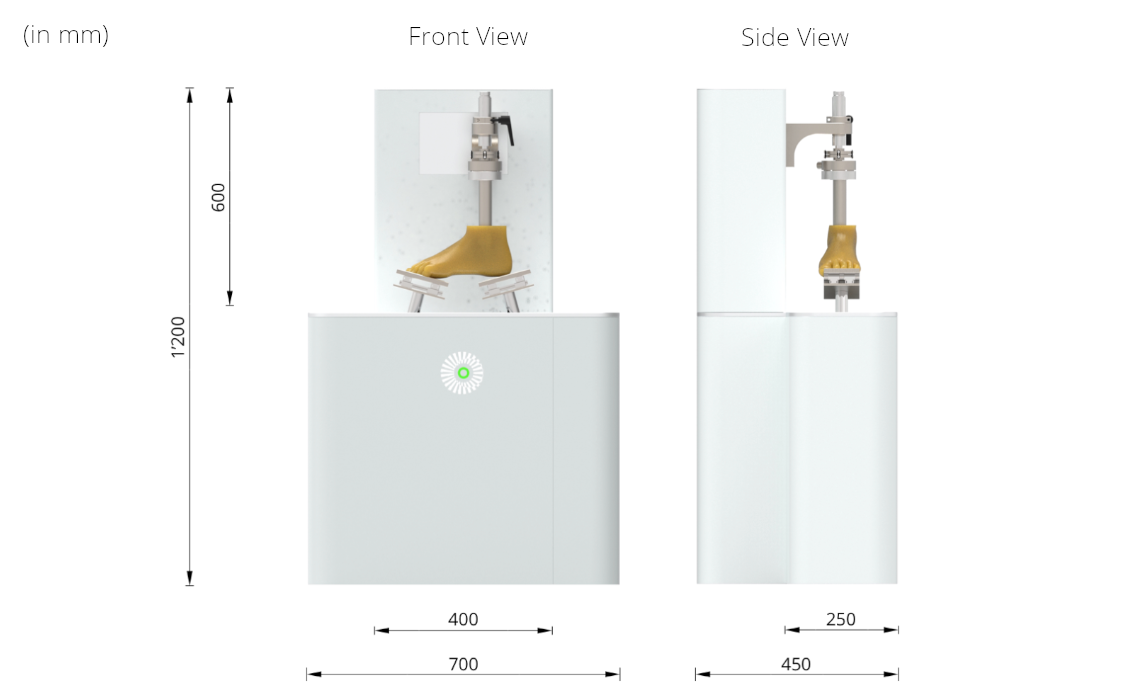

| Work space min. | Height | mm | 600 | |||
| Width Length |
mm mm |
700 250 |
||||
| Electrical Power | VAC | 110 | ||||
| Weight | kg | 450 |
