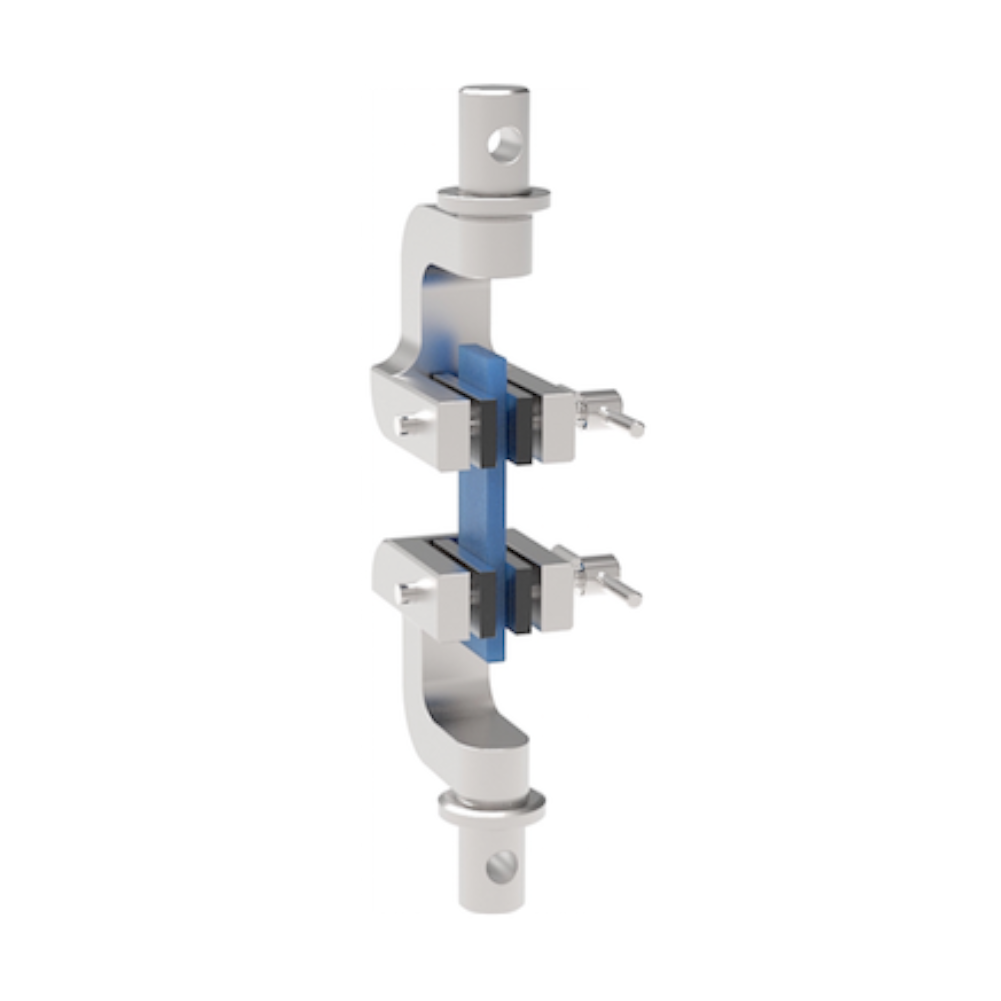

Vise Grip - small
GR.VI.MA.SM
The perfect manual vise grip for tensile testing of metals, plastic, composites and wood.
Description
Multi-purpose, easy to use manual vise grip. The set contains two clamping elements made of hardened steel as well as the necessary assembly parts. The grip is available in different sizes. In addition, various adapter options are available for mounting on a test system.
Application
Tensile testing of various materials, including metal, plastics, composites, wood.
Specifications
Model | GR.VI.MA.SM.0001 | GR.VI.MA.SM.0002 | GR.VI.MA.SM.0005 | GR.VI.MA.SM.0010 | ||
Force Capacity | 100 N | 200 N | 500 N | 1 kN | ||
Type | Vise Action | |||||
Specimen Thickness | 0...10 mm | 0...12 mm | 0...16 mm | 0...20 mm | ||
Operation | Manual, Screw | |||||
Temperatur Rating | -150...+280 °C | |||||

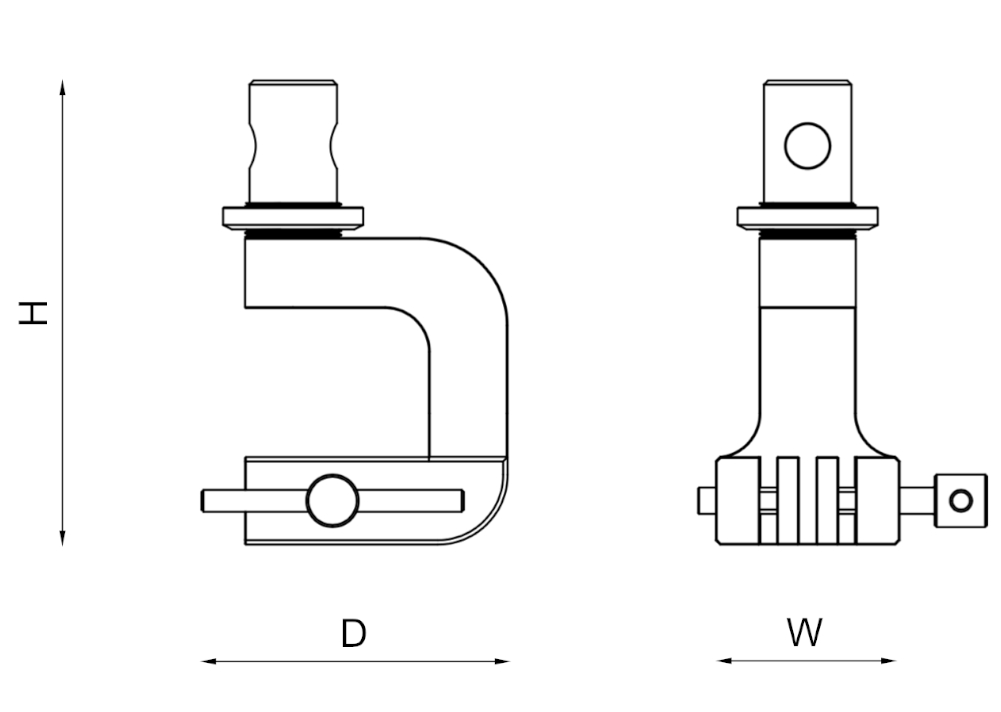

Dimensions
| H D W | 80 100 25 | 100 90 28 | 120 100 32 | 140 110 36 | |
Weight | 4.5 kg | 5.2 kg | 6.5 kg | 8.4 kg | ||
Adapter & Jaws
Adapter Male
Adapter Female
Jaw for Flat Specimens
Jaw for Round Specimens
